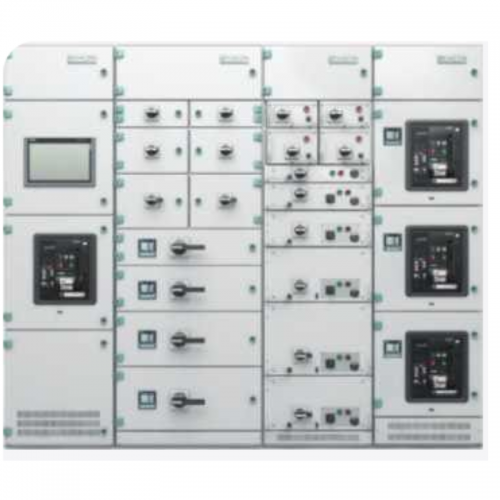

SIVACON 8PT LV Switchgear Assemblies

SIVACON 8PT

• 8PT low-voltage switchgear is the latest generation product developed by Siemens and produced by global partners;

• All standard solutions are passed based on IEC /GB complete type test verification

• Flexible application solutions to meet different project needs

• Horizontal bus rated current up to 7400A - peak withstand current Ipk up to 375KA

Technical Parameters

• Rated voltage: 35(10)/0.69kV (wind power)

35(10)/0.315/0.315kV (PV)

• Rated capacity: 630 to 3400kVA (wind power)

630 to 2500kVA (PV)

• Altitude: 4000 meters

 Features

• Transformer to be installed in an open manner;

• The structure of each control module independently distributed;

• Transformer easy to dissipate heat;

• Easy for service and maintenance;

• High safety factor;

• The box body is designed fully sealed, with a protection grade up to IP54;

• Provided with gas relay, featuring light gas alarm, heavy gas protection for gas protection of the system;

• Three options available for the HV unit: Vacuum load switch-fuse combination, vacuum circuit breaker or C-GIS;

• Intelligent design of the whole station. The protection system is provided with microcomputer integrated automation device of the substation, which can realize the functions of remote control, telemetering, teleindication, and remote adjustment.

 Scope of Application

• Protected from rain and snow, sand and dust, and corrosion, fully enclosed, applicable for places with harsh environment;

• Applicable for PV, wind power and other fields.

Fixed-Mounted vs Plug-In vs Withdrawable SIVACON 8PT

Different SIVACON 8PT configurations are suitable for different operating requirements.

Fixed-mounted design is suitable for stable low voltage distribution systems where the circuit configuration is relatively fixed and cost efficiency is important.

Plug-in design is suitable for feeder circuits requiring easier replacement and improved maintenance convenience.

Withdrawable design is suitable for motor control centers, critical production systems, data centers, and projects requiring faster maintenance, safer isolation, and higher operational flexibility.

Before choosing the cabinet structure, buyers should confirm the load type, maintenance frequency, safety requirements, available space, and future expansion plan.

Juhonkia provides SIVACON 8PT LV switchgear assemblies for projects requiring reliable low voltage power distribution, flexible cabinet configuration, and long-term operating stability. The product can be used in industrial facilities, commercial buildings, data centers, infrastructure systems, substations, and critical power applications.
