How Do Pole Mounted Vacuum Circuit Breakers Protect Outdoor Power Systems?

Pole Mounted Vacuum Circuit Breakers (VCBs) are an essential component in medium-voltage outdoor power distribution systems. Designed to provide reliable switching and protection, these devices are widely used in rural, industrial, and utility networks where robust, low-maintenance solutions are required.

What is a Pole Mounted Vacuum Circuit Breaker?

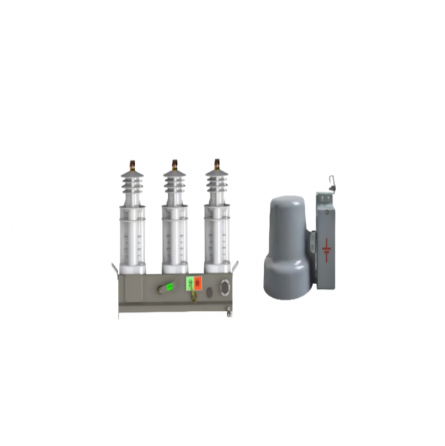

A pole mounted vacuum circuit breaker is a type of medium-voltage switchgear installed on utility poles or outdoor structures. Unlike traditional oil-based or air-insulated breakers, it uses a vacuum as the arc extinguishing medium, allowing it to interrupt electrical current efficiently during overloads or short circuits.

Key Features and Benefits

1. Durable and Reliable
   Vacuum interrupters have long service life, high dielectric strength, and excellent arc-quenching capability. Pole mounted VCBs can withstand harsh outdoor environments, including high humidity, temperature fluctuations, and pollution.

2. Compact and Lightweight Design
   The pole-mounted configuration reduces the need for large enclosures or substations, making it ideal for remote locations and space-constrained areas.

3. Low Maintenance
   Unlike oil-based or SF6 breakers, vacuum circuit breakers require minimal maintenance, reducing operational costs and downtime.

4. Fast and Safe Operation
   VCBs can interrupt fault currents rapidly, preventing equipment damage and ensuring system stability. Fully insulated designs enhance operator safety during switching operations.

5. Cost-Effective Outdoor Solution
   Their compact, durable design and minimal maintenance make pole mounted VCBs a cost-effective choice for utilities and industrial power distribution networks.

Typical Applications

• Rural and Remote Power Distribution: Provides reliable switching and protection in areas without large substations.

• Industrial Plants: Protects outdoor medium-voltage circuits supplying industrial equipment.

• Renewable Energy Integration: Used in solar farms, wind farms, and distributed generation networks.

• Urban Network Expansion: Supports overhead line extensions in expanding urban and suburban areas.

How It Works

Pole mounted vacuum circuit breakers operate by opening or closing a circuit within a vacuum interrupter chamber. When a fault occurs:

1. The contacts separate, generating an arc.

2. The vacuum medium quickly extinguishes the arc by deionizing the gap.

3. The circuit is safely interrupted, protecting downstream equipment and preventing outages.

The vacuum interrupter ensures fast response, high reliability, and minimal wear on contacts, even under frequent switching operations.

Conclusion

Pole Mounted Vacuum Circuit Breakers offer a durable, safe, and low-maintenance solution for outdoor medium-voltage power distribution. Their compact design, long service life, and reliable performance make them ideal for utilities, industrial sites, and renewable energy networks. By providing efficient fault protection and flexible outdoor deployment, pole mounted VCBs help maintain stable and reliable electricity supply in diverse environments.
