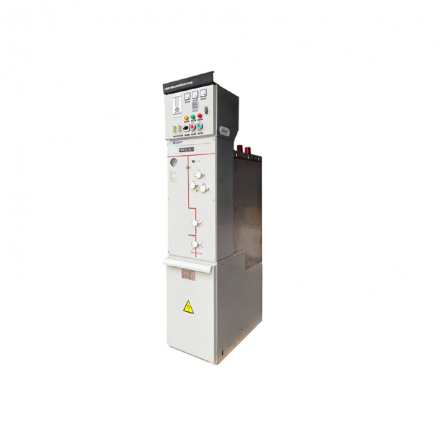

Ring Main Unit (RMU) is a type of medium-voltage switchgear used in electrical distribution networks to ensure the safe and reliable delivery of electricity to end-users. It plays a critical role in modern urban and industrial power distribution systems by allowing flexible network configurations, improving system reliability, and facilitating maintenance without disrupting power supply.
The primary function of an RMU is to connect, protect, and isolate different sections of a medium-voltage distribution network. It allows multiple feeders to form a ring network, enabling electricity to flow from more than one direction. This configuration provides redundancy, meaning if one section of the network fails, the supply can be maintained from another path, minimizing power outages.
RMUs typically include circuit breakers, load break switches, earthing switches, and protection relays. They can switch, isolate, and protect electrical equipment while controlling the power flow in the distribution network. By integrating these components in a compact, fully enclosed unit, RMUs ensure both safety and operational efficiency.
Improved Reliability – The ring network configuration ensures continuous power supply even during faults or maintenance.
Compact and Space-Saving – RMUs are compact, fully enclosed, and often suitable for urban areas with limited installation space.
Safety and Protection – RMUs provide protection against overloads, short circuits, and electrical faults, safeguarding both equipment and personnel.
Ease of Maintenance – Individual sections of the network can be isolated for maintenance without interrupting the entire system.
Flexibility – RMUs support future network expansions and modifications with minimal disruption.
Urban power distribution networks where space is limited and reliability is critical.
Industrial plants and commercial facilities requiring stable medium-voltage supply.
Renewable energy and microgrid systems for integrating distributed power sources.
Substations and feeder networks where multiple incoming and outgoing lines need controlled switching.
RMUs are usually metal-enclosed and gas-insulated (SF6) or vacuum-insulated for enhanced safety and reliability. Common types include:
Three-breaker RMU – Allows isolation and redundancy for more complex network configurations.
Two-breaker RMU – Simpler design for basic ring networks.
Gas-insulated RMU (GIS) – Compact and maintenance-free, ideal for space-constrained urban installations.
A Ring Main Unit is a vital component in medium-voltage electrical distribution systems. It enhances network reliability, operational flexibility, and safety, while providing compact and efficient switching solutions for urban, industrial, and utility power networks. RMUs are widely adopted worldwide due to their ability to maintain uninterrupted power supply and facilitate easy network maintenance.
