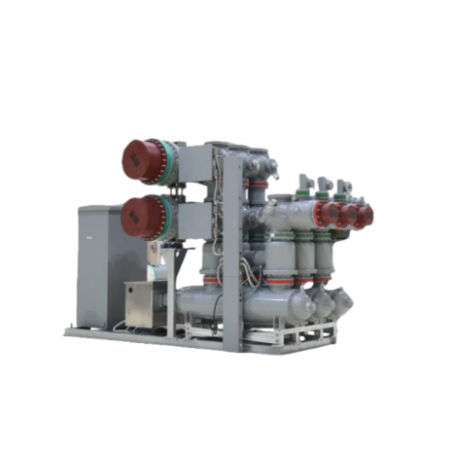

Gas Insulated Switchgear (GIS) is a type of high-voltage electrical switchgear in which the key components—such as circuit breakers, busbars, and disconnectors—are enclosed in a sealed container filled with insulating gas, typically sulfur hexafluoride (SF6). GIS is widely used in medium- and high-voltage power transmission and distribution systems, especially where space is limited or environmental conditions are harsh.
Compact Design: The use of SF6 gas allows insulation of high-voltage components in a smaller footprint compared to air-insulated switchgear (AIS), making GIS ideal for urban or space-constrained installations.
High Reliability: Fully enclosed design protects internal components from dust, moisture, pollution, and environmental hazards, ensuring stable and continuous operation.
Low Maintenance: The sealed system minimizes the need for frequent inspections and maintenance, reducing operational costs.
Safety: GIS reduces the risk of electrical accidents, as all live components are enclosed and isolated.
The primary function of a GIS is to control, protect, and isolate electrical equipment in high-voltage networks. It works through the following mechanisms:
Insulation with SF6 Gas: SF6 gas is an excellent insulator and arc quencher. It surrounds the conductors and switches, allowing them to operate safely at high voltages in a compact enclosure.
Switching and Protection: GIS includes components such as circuit breakers, disconnectors, and earthing switches. These devices allow operators to connect, disconnect, and isolate parts of the network for maintenance or during faults.
Arc Quenching: When current interruption is required, SF6 gas absorbs the energy from the electrical arc created during switching. The gas rapidly cools and deionizes the arc, safely interrupting the current flow.
Integration and Monitoring: GIS often incorporates monitoring sensors and automation for voltage, current, and gas pressure, enabling intelligent control, fault detection, and preventive maintenance.
Urban Substations: Compact GIS units are ideal for city substations where land space is limited.
Industrial Facilities: Ensures safe and reliable high-voltage power supply for large factories and industrial complexes.
Renewable Energy Projects: Integrates wind and solar power into the transmission network with high reliability.
High-Reliability Networks: Used in areas where uninterrupted power supply is critical, such as hospitals, data centers, and airports.
Significant space savings compared to traditional air-insulated switchgear.
Enhanced safety and reliability in challenging environments.
Minimal maintenance requirements, reducing operational costs.
Long service life with stable performance in various climates.
Supports high-voltage networks up to 800 kV and beyond.
Gas Insulated Switchgear (GIS) is a modern, compact, and highly reliable solution for medium- and high-voltage power transmission and distribution systems. By enclosing all live components in a sealed SF6 gas environment, GIS ensures safety, reduces maintenance, and allows for flexible, space-efficient installations. Its ability to reliably control, protect, and isolate electrical networks makes it a critical component in urban, industrial, and renewable energy applications worldwide.
