The electrical power system is divided into two main segments: the transmission grid and the distribution grid. Both play critical roles in delivering electricity from power plants to end-users, yet they differ significantly in purpose, design, and operational characteristics. Understanding these differences is essential for engineers, utility planners, and industrial operators involved in power system design, operation, and maintenance.
The transmission grid is designed to transport large volumes of electricity over long distances from power generation plants to regional or local substations. To achieve this efficiently, the transmission grid operates at very high voltages, typically ranging from 110 kV to over 400 kV, which helps minimize energy losses during long-distance transfer. Transmission lines are often supported by large overhead towers or, in some cases, underground cables for urban areas.
Transmission networks are built for efficiency, reliability, and continuous operation. They include specialized equipment such as high-voltage switchgear, circuit breakers, transformers, and monitoring systems. The primary function of the transmission grid is to move electricity in bulk with minimal disruption while maintaining system stability across a wide region. Because transmission grids carry high voltages and large power flows, system protection, fault detection, and grid redundancy are critical design considerations.
Transmission grids are essential for integrating large-scale power generation, including thermal, hydroelectric, and renewable energy sources, into the broader electricity network. They form the backbone of national or regional grids, linking power plants with multiple substations and ensuring electricity availability across cities, industrial zones, and remote areas.
The distribution grid is responsible for delivering electricity from substations to end-users, including residential homes, commercial buildings, and industrial facilities. Unlike the transmission grid, distribution networks operate at medium to low voltages, typically ranging from 11 kV and 22 kV for medium-voltage networks, down to 230/400 V for low-voltage end-user connections.
Distribution grids are highly branched and designed to ensure safety, reliability, and voltage stability for a wide variety of customers. Components include transformers, medium- and low-voltage switchgear, circuit breakers, and underground or overhead cables. Distribution networks are more complex at the local level due to the large number of connections and diverse load demands. Advanced monitoring, automation, and voltage regulation technologies are often integrated to optimize performance and reduce downtime.

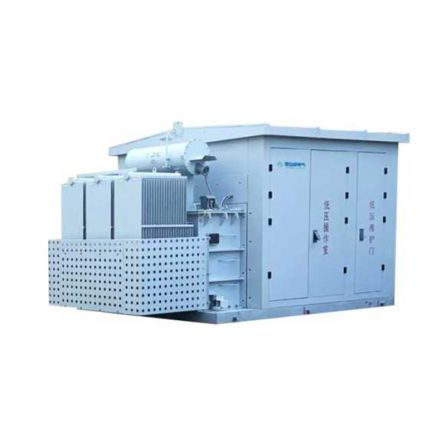

The distribution grid must adapt to varied environments, from dense urban areas with space constraints to industrial plants requiring high-capacity and robust electrical systems. Compact designs such as gas-insulated switchgear are particularly suitable for urban installations, while modular prefabricated substations are widely used in industrial or remote areas to ensure rapid deployment and flexible expansion.
The transmission and distribution grids differ in several fundamental aspects:
Voltage Levels: Transmission grids operate at very high voltages to reduce losses over long distances, whereas distribution grids operate at medium to low voltages suitable for end-user consumption.
Scope and Coverage: Transmission networks span long distances, connecting multiple generation sources to regional substations. Distribution networks serve localized areas, supplying electricity directly to consumers.
Equipment and Design: Transmission grids use high-voltage switchgear, towers, and large substations, while distribution grids employ transformers, medium- and low-voltage switchgear, and more complex branching networks.
Function: Transmission focuses on bulk transfer and stability over long distances; distribution focuses on safe, reliable, and efficient delivery to end-users.
Understanding these distinctions helps in designing power systems that are both reliable and efficient, while enabling the integration of renewable energy and smart grid technologies.
Both transmission and distribution grids serve essential roles across multiple sectors:
Utilities: Large-scale transmission grids connect power plants to urban and rural substations, while distribution networks deliver electricity to homes, businesses, and public facilities.
Industrial Facilities: Distribution grids provide stable, high-quality power for manufacturing plants, industrial parks, and critical infrastructure, often incorporating automation and backup systems.
Renewable Energy Integration: Transmission networks transport electricity from wind farms, solar plants, and hydroelectric stations to regional grids, while distribution grids ensure local delivery to communities and industrial sites.
Urban Infrastructure: Distribution systems in cities are designed for space efficiency, safety, and reliability, often using compact GIS equipment and underground cabling.
A modern power system requires careful coordination between transmission and distribution networks. Engineers must consider load demand, voltage regulation, fault tolerance, and system redundancy. Modular design, intelligent monitoring, and automation are increasingly important, enabling predictive maintenance, energy management, and smart grid capabilities. Both grids must be designed to adapt to evolving energy requirements, including the integration of renewable sources, electric vehicle charging infrastructure, and emerging industrial loads.
The transmission grid and distribution grid are distinct yet interconnected segments of the power system. The transmission grid ensures the efficient bulk transfer of electricity over long distances, while the distribution grid delivers safe, reliable power to end-users. Together, they form a complete network that supports modern energy needs. Advances in design, monitoring, and automation continue to improve the efficiency, safety, and resilience of both grids, enabling sustainable and intelligent power delivery for utilities, industries.
