Energy efficient design
Safety, environmental protection and economy
Intelligent monitoring and protection
Compact structure and modular expansion
High reliability and environmental adaptability

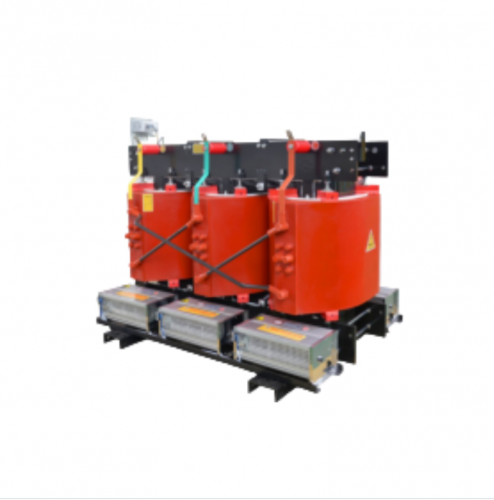

SC(B)12(14,18)series 10kVintelligent epoxy cast dry-typedistribution transformer is intelligent power distribution equipment designed for urban power grid,high-rise buildings, commercialcenters, hospitals, new energy power stations and other scenarios.The product adopts epoxy resin vacuum casting process, partialdischarge <5pC,support inteligent monitoring and protection functions, with high efficiency and energy saving, safe and reliable,convenient maintenance,etc.,is the core equipment for the transformation of modern power distribution system to intelligent and green.

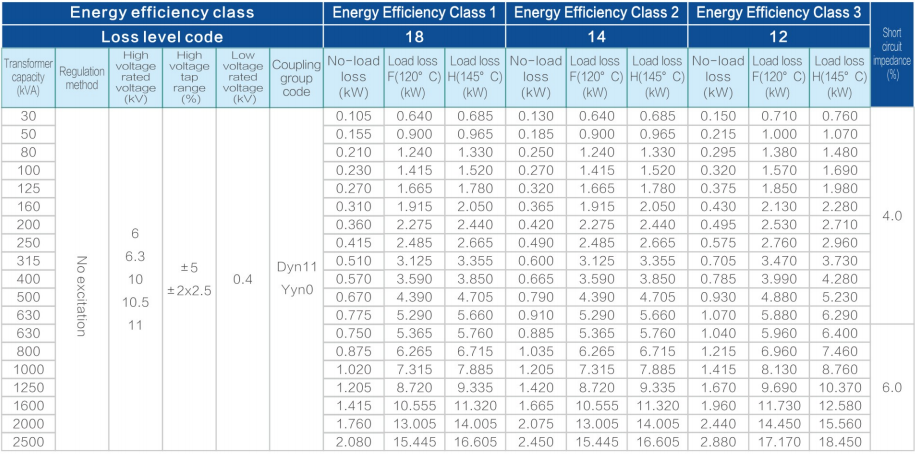

Main technical parameters
